November 27, 2012 / Randy Coppinger

ProTools View Shortcuts

I always learn something when I watch someone record, edit, mix, or otherwise work with audio. I love “Wait! How did you do that?” moments in the studio. But here’s a little trick I discovered by mistake. Apparently I had too much blood in my caffeine system the day I accidentally pressed Control-Option-Command-[.

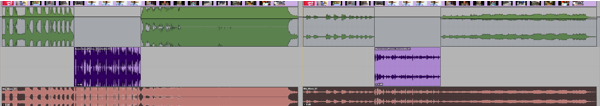

Before (left): Waveforms extend past the top and bottom of the tracks.

After (right): Waveforms fit inside the upper and lower boundaries of the tracks.

Being able to null the waveform zoom height is significant to me for at least two reasons:
(1) A reference point helps keep perspective.
(2) At the null height (or smaller) the crew cut of digital clipping or over-limiting can be seen.

I shared my joy with the internets and was rewarded with two more quick view changes by Julius Mauranen (@juliusmauranen). The first one is obtained by using Option-A.

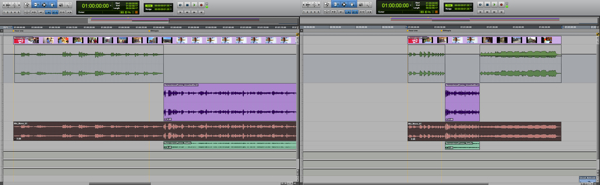

Before (left): Work area shows a limited view of the timeline left to right.

After (right): The entire length of the timeline fits in the Edit window from left to right.

The key combo for this view change is Control-Option-Command-Up Arrow.

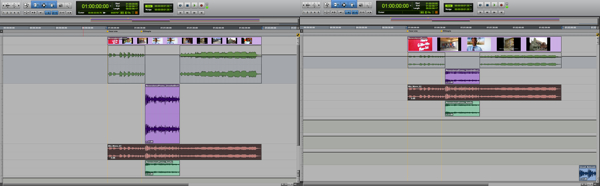

Before (left): The height of individual tracks prevents seeing all of them.

After (right): All tracks are visible in the Edit window from top to bottom.

Got a pinboard for articles like this one? Cool-
Follow Me on Pinterest

2 Comments

Leave a Comment
  1. James Bryant / Nov 27 2012 11:20 am

    Very helpful little post. I think your tweet a while back first put me on to the waveform zoom height trick. Have you tried option-F as well?

    • Randy Coppinger / Nov 27 2012 11:29 am

      Yes, the number row (for zoom presets), R and T get used with Option-F every day. I love D and G for making fades quickly. But probably the biggest time saver I use is Shift-Command-K: Export Clips as Files, instead of Bounce to Disk. Thanks James.
